Sentinel XL CBRN Deluxe PAPR System with Rechargeable NiMH Battery
SKU: S-5000-02
SKU: S-5000-02
- CBRN CAP 2 protection: NIOSH-approved loose-fitting CBRN PAPR, rated CAP 2 with a 10,000 LRPL.
- Deluxe backpack configuration: the NIOSH-approved Sentinel XL Backpack supports the blower for hands-free deployment and stores the system components between uses.
- Rechargeable NiMH power: up to 8 hours nominal run time and approximately 500 charge/discharge cycles, with a smart battery charger included.
- No fit testing: single-size, lay-flat butyl hood with a cushioned, adjustable antimicrobial head strap.
- Low-voltage alarm: a flashing LED and buzzer alert the wearer to low battery voltage.
- Converts to infectious-disease use: with a Sentinel XL HP conversion kit, the same blower can be used with a head cover or hood and HEPA cartridges.
- Also available: with an alkaline battery pack or in the Standard configuration with a duffel bag.
- Product ID: ILC Dover S-5000-02
$1,825.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The Sentinel XL CBRN Deluxe PAPR System with Rechargeable NiMH Battery is a complete, NIOSH-approved loose-fitting powered air-purifying respirator (PAPR) for emergency preparedness decon teams, including hospital decon and first receiver teams. It is approved at a CBRN CAP 2 rating with a 10,000 LRPL and is designed to protect against military warfare agents, biological threats, industrial chemical threats and nuclear particulate threats. The Sentinel XL CBRN is the only loose-fitting PAPR designed to deliver a CAP 2 rating, and its CBRN cartridges provide twice the gas and vapor service life of CAP 1 cartridges.
Unlike the Standard configuration, which ships with a duffel bag, the Deluxe configuration includes the NIOSH-approved Sentinel XL Backpack. It supports the blower and cartridges for hands-free deployment and stores the system components between uses. The single-size, lay-flat butyl hood requires no fit testing and is designed to stow easily in the backpack.
The rechargeable NiMH battery pack has a nominal run time of up to 8 hours, approximately 500 charge/discharge cycles and a 5-hour recharge time. The included smart battery charger switches automatically to trickle charge and shows its status with a red/green LED. The battery pack snaps directly onto the blower, a design that reduces snagging potential and aids decontamination. The same configuration is also available with an alkaline battery pack.
The Sentinel XL blower platform supports both decon and infectious-disease applications. With a Sentinel XL HP conversion kit for the head cover, clear hood or BioShield full hood, each supplied with HEPA cartridges, the same blower can be used for infectious-disease protection, reducing costs and simplifying equipment inventory.

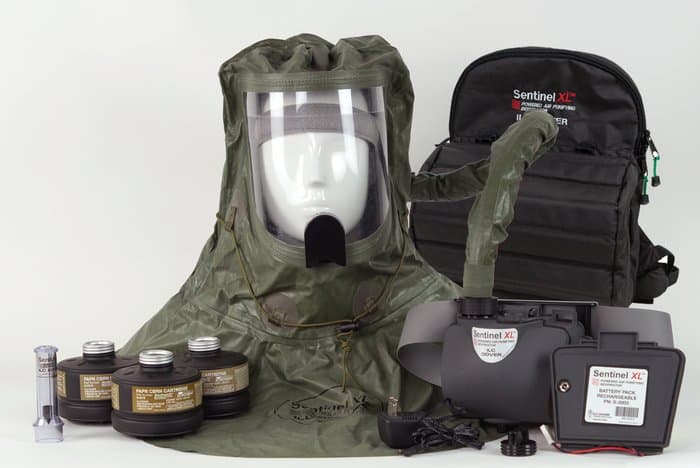

What's included
- S-2002 Sentinel XL Blower Assembly
- S-2003 Sentinel XL Rechargeable NiMH Battery Pack
- S-2009 Sentinel XL Smart Battery Charger
- S-2010 Sentinel Flow Meter
- S-2016 Sentinel XL CBRN CAP 2 Cartridges (Pack of 3)
- S-4011 Sentinel Quick-Loc Waist Belt
- S-2008 Sentinel XL Backpack
- S-2001 Sentinel XL CBRN Butyl Hood Assembly with Breathing Tube
Key specifications
- Protection: NIOSH CBRN CAP 2, 10,000 LRPL
- CBRN cartridges: CAP 2, three per system, 40 mm military/NATO-style interface, hermetically sealed foil pouches
- Blower: sealed nylon shell with dual-chamber design, 195 lpm nominal flow, 1.0 lb without battery, noise below 75 dB
- Low-voltage alarm: flashing LED and buzzer
- NiMH battery pack: 1.65 lb, nominal 8 hours, approximately 500 charge/discharge cycles, 5-hour recharge
- Charger: AC/DC for sealed NiMH battery, 6 V, 2 A, auto-switch to trickle charge, red/green LED
- Hood: single size, butyl-coated fabric, sewn and taped seams, impact-resistant optical-grade polycarbonate visor, M40-style silicone exhaust valve, cushioned antimicrobial head strap with five adjustment positions
- Latex-free
Which Sentinel XL CBRN system do I need?
All four are the same NIOSH-approved CBRN CAP 2 respirator with a 10,000 LRPL. What differs is how the system is powered and how your team carries it.
| CBRN Standard System, NiMH S-5000-01 | CBRN Deluxe System, NiMH S-5000-02 | CBRN Standard System, alkaline S-5000-07 | CBRN Deluxe System, alkaline S-5000-08 | |
|---|---|---|---|---|
| Battery | S-2003 rechargeable NiMH, approximately 500 charge and discharge cycles | S-2003 rechargeable NiMH, approximately 500 charge and discharge cycles | S-4013 alkaline pack, five standard D cells. Nothing to charge, which increases readiness. | S-4013 alkaline pack, five standard D cells. Nothing to charge, which increases readiness. |
| Nominal run time | 8 hours | 8 hours | 10 hours per set of five D cells | 10 hours per set of five D cells |
| Charger | S-2009 Smart Battery Charger included. Five-hour recharge, auto-switch to trickle charge. | S-2009 Smart Battery Charger included. Five-hour recharge, auto-switch to trickle charge. | Not needed. Replace the D cells instead. | Not needed. Replace the D cells instead. |
| Battery pack weight | 1.65 lb | 1.65 lb | 1.95 lb | 1.95 lb |
| Carried and stored in | Sentinel duffel bag, for storing and transporting the complete system | Sentinel XL Backpack. NIOSH approved, doubles as carrier and blower suspension for hands-free deployment. | Sentinel duffel bag, for storing and transporting the complete system | Sentinel XL Backpack. NIOSH approved, doubles as carrier and blower suspension for hands-free deployment. |
| The same in all four | NIOSH CBRN CAP 2 protection with a 10,000 LRPL, the only loose-fitting PAPR designed to deliver a CAP 2 rating. Latex free. S-2001 butyl hood assembly with integral breathing tube, single size, no fit testing · three S-2016 CBRN CAP 2 cartridges · S-2002 Sentinel XL blower · S-2010 flow meter · S-4011 Quick-Loc waist belt | |||
The same blower also supports infectious disease and hazardous drug work: an HP head cover, HP clear hood, HP BioShield or HD BioShield conversion kit changes the hood and cartridges. These systems are air-purifying and do not supply oxygen, so they are not for use in oxygen-deficient atmospheres. NIOSH approvals apply to complete assemblies: use the system only in the configurations listed on the approval label, and follow the user instructions.
