Sentinel XL HP BioShield Full Hood PAPR System with Alkaline Battery
SKU: S-3000-23
SKU: S-3000-23
- APF 1,000 protection: 100 times the protection of an N95, with HEPA filtration and no fit testing.
- ASTM F1670 and F1671 tested: the hood and its sewn and taped seams pass ASTM F1670-14 (synthetic blood) and ASTM F1671-13 (blood-borne pathogens) testing.
- Double-skirted design: internal and external skirts interface with most protective suits, with PAPR airflow venting between the two skirts.
- Alkaline D-cell power: nominal 10 hours per set of five D-cell batteries, with no charging required.
- Hazardous-drug option: also accepts S-4012 OV/AG/HE cartridges (sold separately) for protection against hazardous drugs.
- Converts to CBRN decon: the S-5000-05 CBRN conversion kit adapts the same blower for hospital decon teams.
- Also available: the Sentinel XL HP system with a head cover or clear hood.
- Product ID: ILC Dover S-3000-23
$1,728.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The Sentinel XL HP BioShield Full Hood PAPR System with Alkaline Battery is a complete, NIOSH-approved loose-fitting powered air-purifying respirator (PAPR) designed to provide healthcare professionals with respiratory protection against a range of infectious diseases. The BioShield full hood was designed in collaboration with leading healthcare organizations to meet their respiratory protection needs for Ebola protection. It has an assigned protection factor (APF) of 1,000, or 100 times the protection of an N95, and requires no fit testing.
The protective hood and its sewn and taped seams pass ASTM F1670-14 and ASTM F1671-13 testing, which the CDC requires for protection against synthetic blood and blood-borne pathogen penetration. Internal and external skirts interface with most protective suits. PAPR airflow vents between the two skirts, and the skirt and exhaust system inflates the suit for improved protection and comfort. The hood has an ultra-clear PET visor and a cushioned head strap that supports a wide range of wearers in a single size.
The alkaline battery pack holds five standard D-cell batteries, which increases readiness: there is nothing to charge, and the pack is rated for a nominal 10 hours per set. The rugged, dual-chamber Sentinel XL blower delivers more than 230 lpm in HP hood systems, and a low-voltage alarm with a flashing LED and buzzer alerts the wearer.
The Sentinel XL blower platform supports infectious-disease, hazardous-drug and CBRN applications. A single system accommodates HEPA and OV/AG/HE filters: for hazardous-drug protection, the BioShield full hood can be used with S-4012 OV/AG/HE cartridges (sold separately). For hospital decon operations, the Sentinel XL CBRN PAPR Conversion Kit converts the same blower to a NIOSH CBRN CAP 2 configuration. The HP system is also available with a head cover or clear hood.

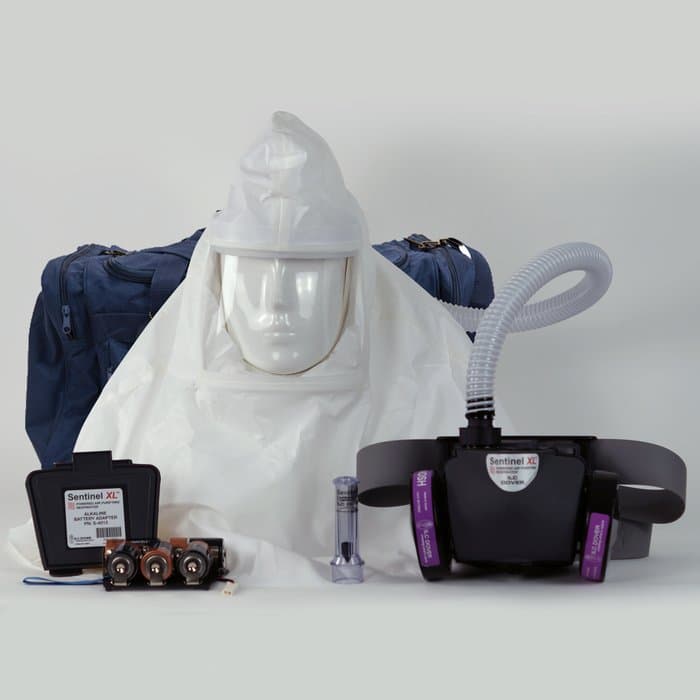

What's included
- S-2002 Sentinel XL Blower Assembly
- S-4013 Sentinel XL Alkaline Battery Pack
- S-2010 Sentinel Flow Meter
- S-4005 Sentinel Breathing Tube
- S-4002 Sentinel HEPA P100 Cartridges
- S-4011 Sentinel Quick-Loc Waist Belt
- S-2020 Sentinel Duffel Bag
- S-2028 Sentinel XL BioShield Full Hood
Key specifications
- Protection: APF 1,000, 100 times the protection of an N95, no fit testing
- BioShield hood: coated spun-bonded polyolefin, sewn and taped seams passing ASTM F1670-14 and ASTM F1671-13, internal and external skirts, ultra-clear PET visor, cushioned head strap, single size
- Filters: S-4002 HEPA P100 cartridges; S-4012 OV/AG/HE cartridges available for hazardous drugs
- Blower: sealed nylon shell with dual-chamber design, over 230 lpm with HP hood systems, 1.0 lb without battery, noise below 75 dB, 40 mm military/NATO-style cartridge interface
- Low-voltage alarm: flashing LED and buzzer
- Alkaline battery pack: 1.95 lb, nominal 10 hours per five Duracell D-cell batteries
- Breathing tube: polyurethane coating over a rigid plastic helix
- Latex-free
Which Sentinel XL HP system do I need?
All four are built on the same Sentinel XL blower. The choice comes down to the head top you need, and whether the hood and cartridges come with the system or are chosen separately.
| HP Standard System S-3000-01 | HP Clear Hood System S-3000-16 | HP BioShield Full Hood System S-3000-23 | HP PAPR Base Kit S-3000-12 | |
|---|---|---|---|---|
| Protection | APF 25 2.5 times the protection of an N95 | APF 1,000 100 times the protection of an N95 | APF 1,000 100 times the protection of an N95 | Your choice APF 25 with the head cover, APF 1,000 with either full hood |
| Head top supplied | S-4001 Sentinel XL Head Cover | S-3101 Sentinel XL Clear Hood | S-2028 Sentinel XL BioShield Full Hood | None. Add the head cover, clear hood or BioShield full hood separately. |
| What the head top gives you | Wide field of view, accommodates stethoscopes, secure threaded breathing tube connection | 320-degree field of view, no internal suspension system, accommodates most head, hearing and eye protection | Sewn and taped seams pass ASTM F 1670-14 and ASTM F 1671-13, required by the CDC for protection against synthetic blood and blood-borne pathogen penetration. Internal and external skirts interface with most protective suits. | Whichever of the three you choose, and you can keep more than one on hand for different work |
| Cartridges supplied | S-4002 HEPA P100 | S-4002 HEPA P100 | S-4002 HEPA P100 | None. Choose HEPA or OV/AG/HE cartridges. |
| Battery | S-2003 rechargeable NiMH Nominal 8 hours, approximately 500 charge and discharge cycles | S-4013 alkaline pack Nominal 10 hours per set of five D cells | S-4013 alkaline pack Nominal 10 hours per set of five D cells | S-2003 rechargeable NiMH Nominal 8 hours, approximately 500 charge and discharge cycles |
| Charger | S-2009 Smart Battery Charger included | Not needed. Replace the D cells instead. | Not needed. Replace the D cells instead. | S-2009 Smart Battery Charger included |
| The same in all four | Loose-fitting, no fit testing, single-size head tops. Over 230 lpm airflow in HP hood systems, low-voltage alarm with flashing LED and buzzer, latex free. S-2002 Sentinel XL blower · S-2010 flow meter · S-4005 breathing tube · S-4011 Quick-Loc waist belt · Sentinel duffel bag | |||
| Changing it later | Every system here uses the same blower, so a conversion kit changes the head top and cartridges without buying a second system. That is also how to get a hood and battery pairing that is not sold as a single system: start from the base kit and add the kit you need. HP Head Cover kit · HP Clear Hood kit · HP BioShield kit · HD BioShield kit · CBRN kit | |||
Each head top works with HEPA cartridges for infectious disease protection or OV/AG/HE cartridges for hazardous drug protection. These systems are air-purifying and do not supply oxygen, so they are not for use in oxygen-deficient atmospheres. NIOSH approvals apply to complete assemblies: use the system only in the configurations listed on the approval label, and follow the user instructions.
