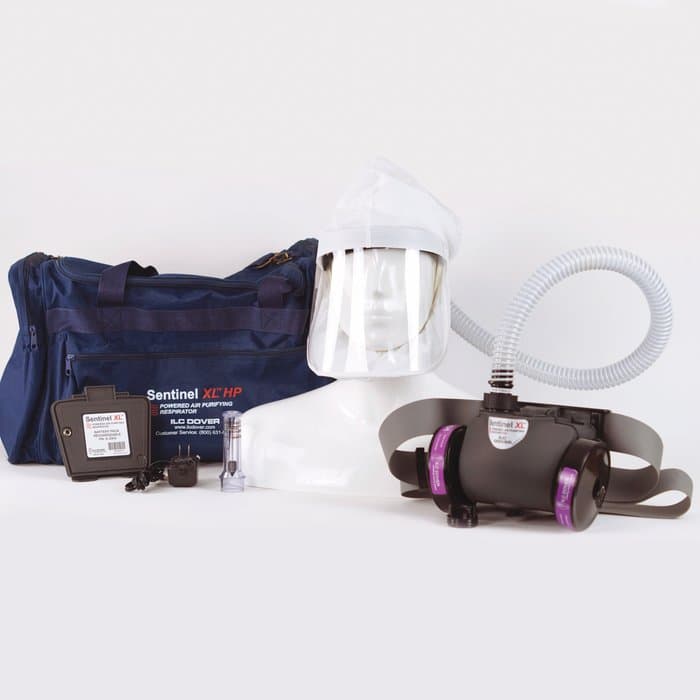

Sentinel XL HP Standard PAPR System with Rechargeable NiMH Battery
SKU: S-3000-01
SKU: S-3000-01
- APF 25 protection: 2.5 times the protection of an N95, with HEPA filtration and no fit testing.
- Stethoscope-compatible: the head cover provides a wide field of view and easily accommodates stethoscopes.
- Single size, anti-glare visor: one size eliminates the need to stock multiple sizes, and a chin panel reduces visor glare.
- Rechargeable NiMH power: up to 8 hours nominal run time and approximately 500 charge/discharge cycles, with a smart battery charger included.
- Hazardous-drug option: also accepts S-4012 OV/AG/HE cartridges (sold separately) for protection against hazardous drugs.
- Converts to CBRN decon: the S-5000-05 CBRN conversion kit adapts the same blower for hospital decon teams.
- Also available: the Sentinel XL HP system with a clear hood or BioShield full hood.
- Product ID: ILC Dover S-3000-01
Need assistance?
Our team can help with volume orders, payment options, and product questions.
$1,112.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The Sentinel XL HP Standard PAPR System with Rechargeable NiMH Battery is a complete, NIOSH-approved loose-fitting powered air-purifying respirator (PAPR) designed to provide healthcare professionals with respiratory protection against a range of infectious diseases. The head cover has an assigned protection factor (APF) of 25, or 2.5 times the protection of an N95, and requires no fit testing.
The head cover provides a wide field of view and easily accommodates stethoscopes. A single size eliminates the need to buy and stock multiple sizes, and the cushioned head strap supports a wide range of wearers. Its impact-resistant, optical-grade polycarbonate visor includes a chin panel that reduces visor glare, and a threaded connection secures the breathing tube.
The rechargeable NiMH battery pack has a nominal run time of up to 8 hours, approximately 500 charge/discharge cycles and a 5-hour recharge time. The included smart battery charger switches automatically to trickle charge and shows its status with a red/green LED. The rugged, dual-chamber Sentinel XL blower delivers more than 230 lpm in HP hood systems, and a low-voltage alarm with a flashing LED and buzzer alerts the wearer.
The Sentinel XL blower platform supports infectious-disease, hazardous-drug and CBRN applications. A single system accommodates HEPA and OV/AG/HE filters: for hazardous-drug protection, the head cover can be used with S-4012 OV/AG/HE cartridges (sold separately). For hospital decon operations, the Sentinel XL CBRN PAPR Conversion Kit converts the same blower to a NIOSH CBRN CAP 2 configuration. The HP system is also available with a clear hood or BioShield full hood.
What's included
- S-2002 Sentinel XL Blower Assembly
- S-2003 Sentinel XL Rechargeable NiMH Battery Pack
- S-2009 Sentinel XL Smart Battery Charger
- S-2010 Sentinel Flow Meter
- S-4005 Sentinel Breathing Tube
- S-4002 Sentinel HEPA P100 Cartridges
- S-4011 Sentinel Quick-Loc Waist Belt
- S-2020 Sentinel Duffel Bag
- S-4001 Sentinel XL Head Cover
Key specifications
- Protection: APF 25, 2.5 times the protection of an N95, no fit testing
- Head cover: coated spun-bonded polyolefin, single size, impact-resistant optical-grade polycarbonate visor with anti-glare chin panel, cushioned head strap, threaded breathing tube connection
- Filters: S-4002 HEPA P100 cartridges; S-4012 OV/AG/HE cartridges available for hazardous drugs
- Blower: sealed nylon shell with dual-chamber design, over 230 lpm with HP hood systems, 1.0 lb without battery, noise below 75 dB, 40 mm military/NATO-style cartridge interface
- Low-voltage alarm: flashing LED and buzzer
- NiMH battery pack: 1.65 lb, nominal 8 hours, approximately 500 charge/discharge cycles, 5-hour recharge
- Charger: AC/DC for sealed NiMH battery, 6 V, 2 A, auto-switch to trickle charge, red/green LED
- Breathing tube: polyurethane coating over a rigid plastic helix
- Latex-free
Which Sentinel XL HP system do I need?
All four are built on the same Sentinel XL blower. The choice comes down to the head top you need, and whether the hood and cartridges come with the system or are chosen separately.
| HP Standard System S-3000-01 | HP Clear Hood System S-3000-16 | HP BioShield Full Hood System S-3000-23 | HP PAPR Base Kit S-3000-12 | |
|---|---|---|---|---|
| Protection | APF 25 2.5 times the protection of an N95 | APF 1,000 100 times the protection of an N95 | APF 1,000 100 times the protection of an N95 | Your choice APF 25 with the head cover, APF 1,000 with either full hood |
| Head top supplied | S-4001 Sentinel XL Head Cover | S-3101 Sentinel XL Clear Hood | S-2028 Sentinel XL BioShield Full Hood | None. Add the head cover, clear hood or BioShield full hood separately. |
| What the head top gives you | Wide field of view, accommodates stethoscopes, secure threaded breathing tube connection | 320-degree field of view, no internal suspension system, accommodates most head, hearing and eye protection | Sewn and taped seams pass ASTM F 1670-14 and ASTM F 1671-13, required by the CDC for protection against synthetic blood and blood-borne pathogen penetration. Internal and external skirts interface with most protective suits. | Whichever of the three you choose, and you can keep more than one on hand for different work |
| Cartridges supplied | S-4002 HEPA P100 | S-4002 HEPA P100 | S-4002 HEPA P100 | None. Choose HEPA or OV/AG/HE cartridges. |
| Battery | S-2003 rechargeable NiMH Nominal 8 hours, approximately 500 charge and discharge cycles | S-4013 alkaline pack Nominal 10 hours per set of five D cells | S-4013 alkaline pack Nominal 10 hours per set of five D cells | S-2003 rechargeable NiMH Nominal 8 hours, approximately 500 charge and discharge cycles |
| Charger | S-2009 Smart Battery Charger included | Not needed. Replace the D cells instead. | Not needed. Replace the D cells instead. | S-2009 Smart Battery Charger included |
| The same in all four | Loose-fitting, no fit testing, single-size head tops. Over 230 lpm airflow in HP hood systems, low-voltage alarm with flashing LED and buzzer, latex free. S-2002 Sentinel XL blower · S-2010 flow meter · S-4005 breathing tube · S-4011 Quick-Loc waist belt · Sentinel duffel bag | |||
| Changing it later | Every system here uses the same blower, so a conversion kit changes the head top and cartridges without buying a second system. That is also how to get a hood and battery pairing that is not sold as a single system: start from the base kit and add the kit you need. HP Head Cover kit · HP Clear Hood kit · HP BioShield kit · HD BioShield kit · CBRN kit | |||
Each head top works with HEPA cartridges for infectious disease protection or OV/AG/HE cartridges for hazardous drug protection. These systems are air-purifying and do not supply oxygen, so they are not for use in oxygen-deficient atmospheres. NIOSH approvals apply to complete assemblies: use the system only in the configurations listed on the approval label, and follow the user instructions.
